The Jeep Wrangler JL Lift Kit - 4.5in - X-Factor X2 - Pro Elite Long Arm - 4DR Diesel - Trail Runner Stage 1 is a top-of-the-line suspension upgrade for avid off-road enthusiasts. Crafted for the ultimate rock crawling experience, this lift kit provides robust performance enhancements for Jeep Wrangler JL 4-door diesel models.

Designed for those who are serious about off-road challenges, this lift kit offers a meticulously engineered suspension system that maximizes your Jeep’s capabilities. The standout feature of the X-Factor X2 Pro Elite kit is its Billet aluminum lower control arms, custom-machined for extraordinary strength. Made from solid square stock bar billet aluminum, these arms are built to withstand extreme off-road conditions. The system further employs an Independent 3-link design for both the front and rear, offering unmatched articulation and performance. The upgrade to 14mm factory hardware, with the provision of 1" Pro Krawler joints, ensures improved durability and flexibility for tackling rugged terrains. Additionally, the rear suspension's "X2" geometry allows for adjustable anti-squat, providing improved stability and control during steep climbs or descents.

Features

• Billet aluminum lower control arms for superior strength
• Independent 3-link front & rear suspension for enhanced articulation
• Double adjustable upper control arms with 14mm hardware and 1" Pro Krawler joints
• Adjustable anti-squat with "X2" rear suspension geometry
• Enhanced rear instant center and rear roll center for optimal performance

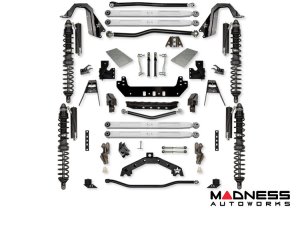

System Includes:

(1) Weld-on Front Long-arm Mounting System

(1) Heat Shield Products Sticky Shield Kit

(1) Front Adjustable Anti-wobble Track Bar

(4) Billet 7075 Aluminum Adjustable Lower Control Arms

(1) Adjustable Front Upper Control Arm

(1) Front Sway Bar Disconnect Kit

(4) Coil Spring Correction Seats

(2) Weld-on Rear Frame Side Long-arm Mounts

(1) Rear Upper Control Arm

(1) Rear Frame Side Upper Control Arm Mount

(2) Rear Extended Sway Bar Links

(1) Rear Adjustable Anti-wobble Track Bar

(2) Weld-on Rear Upper Shock Mount

(2) Weld-on Rear Axle Side Control Arm Mount

(1) Weld-on Rear Track Bar Mount

(1) Weld-on Rear Axle Truss

(2) Rear Brake Line Relocation Brackets

TRAIL RUNNER SYSTEM STAGE 1 (Coilovers Front and Rear)

13” Travel Front RRD 2.625" RR Coilover Shocks Yielding 14.4” of Front Axle Travel

12” Travel Rear RRD 2.625" RR Coilover Shocks Yielding 13.3” of Front Axle Travel

Contact us today to learn more about how the Jeep Wrangler JL Lift Kit - X-Factor X2 - Pro Elite Long Arm can transform your off-road adventures. We're excited to offer installation and customization services at our locations in Austin, Texas, and the Los Angeles, California area. If you have any questions, don't hesitate to give us a call at 512-982-9393 (TX) or 562-981-6800 (CA). Our expert team is here to help you make the most of your Jeep's capabilities.
